30mm TDC Hop-Up regulator
Dimensions: 36,5 x 17mm
Weight: 12,33gr
Approximate diameter of the outer barrel: 30mm
Axial distance of the fastening and adjusting screw: 5mm
COMPATIBILITY:
A&K: M24
ASG: McMillan M40A3
APS - Hakkotsu: APM40A3
CYMA: CM.700, CM.701, CM.703, CM.706, CM.707, CM.708
Double Eagle: M40A3
E&C: L96
Jing Gong: BAR-10 / BAR-10G
S&T: M40A3 / M40A5
Specna Arms: SA-S02 CORE
Tokyo Marui: VSR-10 / VSR-10 G-Spec
Well: MB02, MB03, MB07, MB09, MB10, MB11, MB12, MB16, MB17
Well: MB4401, MB4402, MB4403, MB4404, MB4405, MB4406, MB4407, MB4408, MB4409, MB4410
Well: MB4411, MB4412, MB4413, MB4414, MB4415, MB4416, MB4417, MB4418
The TDC adjusting screw must pass through the outer barrel at the top of Hop Up arm.
Thoroughly measure where this arm is located in the barrel and drill vertically hole from above.
Use a drill with a diameter of at least 3mm, optimally 3.5-4mm.
Bigger hole is not an issue.
If you glue the TDC to the outer barrel, in most cases in fast glue, then just one hole.
If you are going to screw the TDC, typically for the Well MB01, then you will have drill two holes.
See table above for axial distance of the fastening and adjusting screw.
TDC stands for "Top Dead Center".
A term that is used with engines and expresses the position when the piston in the cylinder is in its maximum, highest),position.
Talking about airsoft, this refers to a device that is able to press continuously, usually by means of an adjusting screw), on top of the Hop Up chamber arm.
To form its upper limit, TDC, without unwanted will.
In addition, the control is more sensitive, smoother and usually with a larger range than with conventional lever control.
This AirsoftPro TDC is a simple device suitable for a wide range of airsoft sniper rifles.
By turning the ring, it adjusts the pressure of the chamber arm and adjust bb trajectory.
It adjust Hop Up.
This device provides the user with greater accuracy and comfort than adjusting with a screw or lever.
The device is made of aluminum alloy on precision CNC machines.

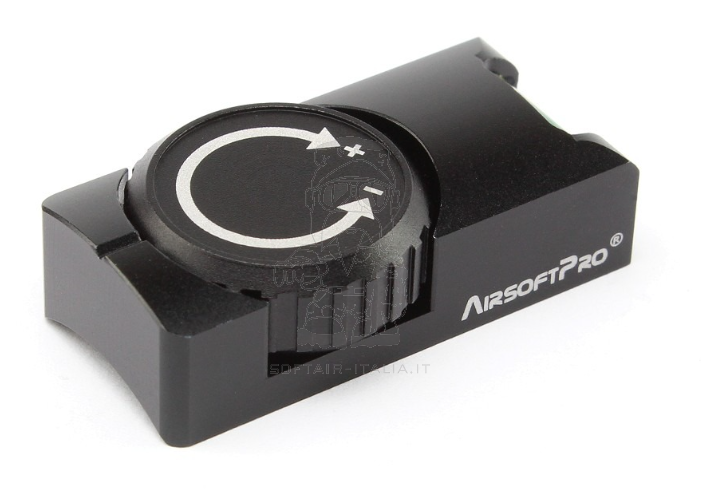

Has two main parts.
Base and a control ring.

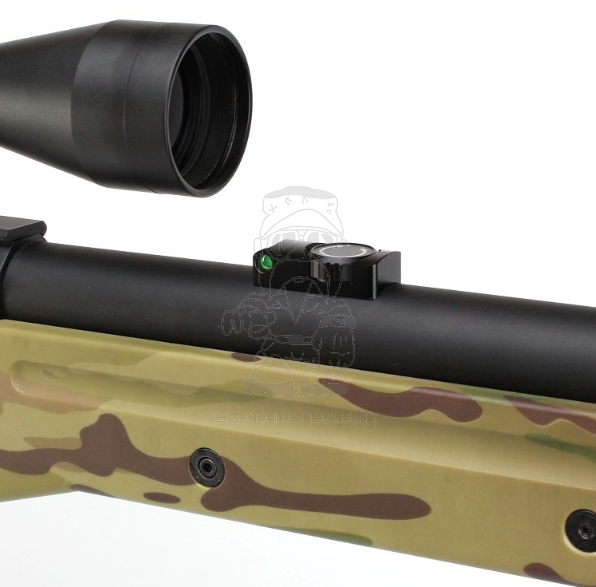

It is placed on top of the outer barrel.
Just above the Hop Up chamber.
The low profile does not interfere with large riflescopes.
This TDC deicw is not primarily supported by replicas manufacturers and cannot simply be attached and bolted.
During installation, it is therefore necessary to partially disassemble the barrel, measure the position of the chamber arm and drill a hole in the outer barrel exactly from the above.

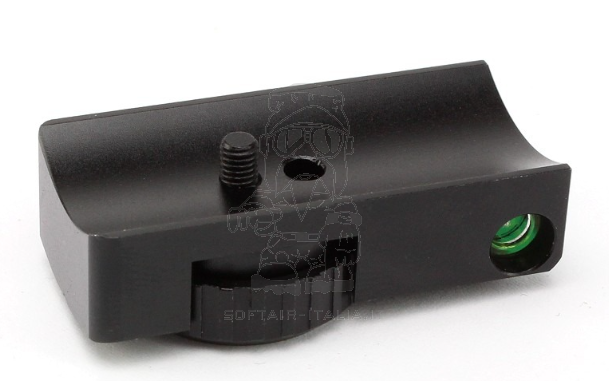

The adjusting screw of the TDC device passes through this hole.
By turning it, its length changes and it raises or lowers the chamber arm.
In most cases, the TDC must be glued on the top of the barrel with super glue.

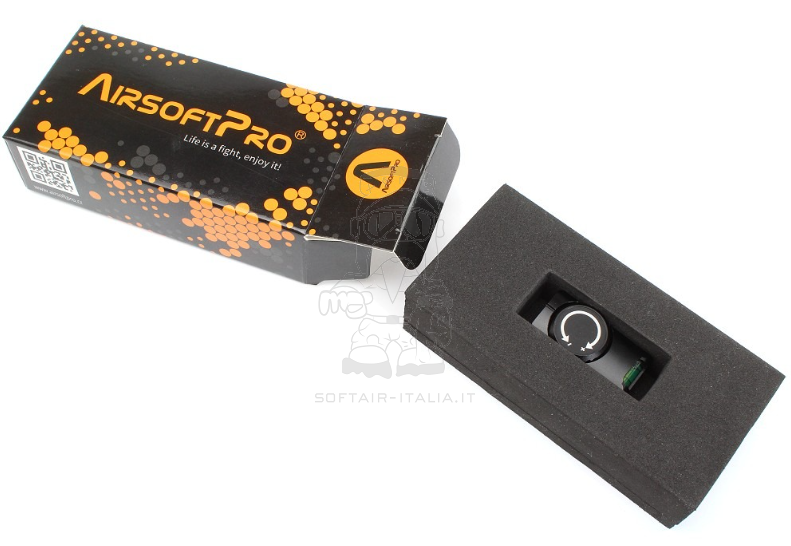

The package includes an M3x10 screw, which can be used to screw the device to the chamber via the barrel.
This screwing is logically better than gluing, however, only a few original chambers have a threaded hole.
A typical example is the chamber for MB01/04/05/06/08/13 by Well.
The newer AirsoftPro chambers also have this thread on their upper side and are compatible with TDC.
Spirit level is not only for more accurate installation of the device, but is also suitable for shooting.
Tilting the replicato the left or right will cause the bullet to bend and therefore less accurate.
A glance at the spirit level can correct this mistake.
Highlights:
full metal construction.
Original design.
Made on precision CNC machining.
Rounded edges to avoid getting caught of the gear.
Sensitive regulation: 1 full turn = stroke 0.5mm
Locking the position of the adjusting ring: 26 positions per turn.
One position has stroke 0.02 mm.
Built in spirit level.
Able to screw to some chambers.
